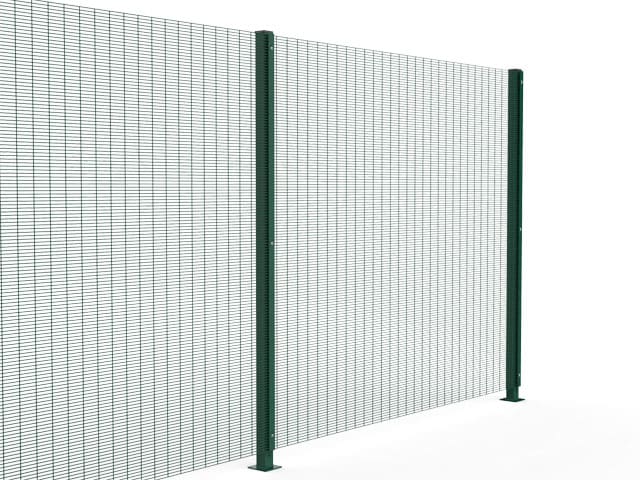

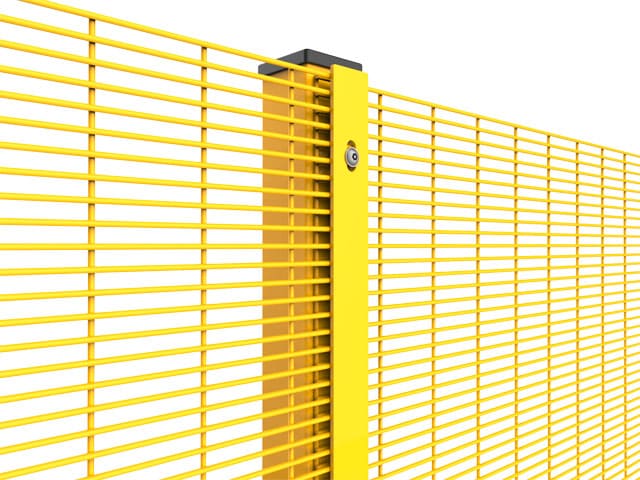

358 Mesh Fence Features Anti-Climb, Anti-Cut, Corrosion Resistance.
The 358 prison mesh fence panels comprise of a tightly knitted mesh of 4mm horizontal and vertical steel wires. The gaps between the wires are 76.2mm wide and 12.7mm high. This mesh is incredibly difficult to cut through with standard cutting tools and with the small gaps between each wire, it makes climbing nigh on impossible without the use of spikes which could be potentially dangerous to children.
The panels are made of heavy mesh with a high level of security in width 2515 mm and a height of 2007 mm to 3302 mm. Several panels can be installed on top of each other. Thus may be achieved a total height of 6300 mm.
358 Mesh Panel Specifications:
Mesh pattern: 76.2 mm (3″) × 12.7 mm (0.5″) resistance welded well at each intersection.
Wire diameter: 4 mm horizontal wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005, or Black RAL 9005.
Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.
358 Mesh Fence posts Specifications:
Material: high grade steel for maximum strength and rigidity.
Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
Finish: inside and outside galvanized , subsequently covered with a polymer powder (Min. 60 micron ).
Colors: Green RAL 6005, or Black RAL 9005.

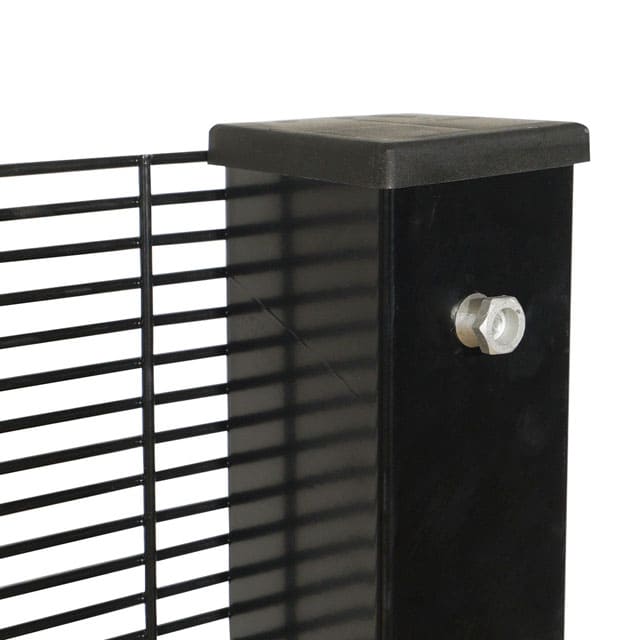

Post cap: metal caps or plastic cap.
Metal clips and clamps are hot dip galvanised then powder coating in green or black color.
Details of The 358 Mesh Fence
Steel Palisade Fence include the fish plate, anti-theft bolts and nut.
Two Warm Tips:
Normally we will give you some extra free accessories for your order. But if you need more accessories, please tell us in advance.
